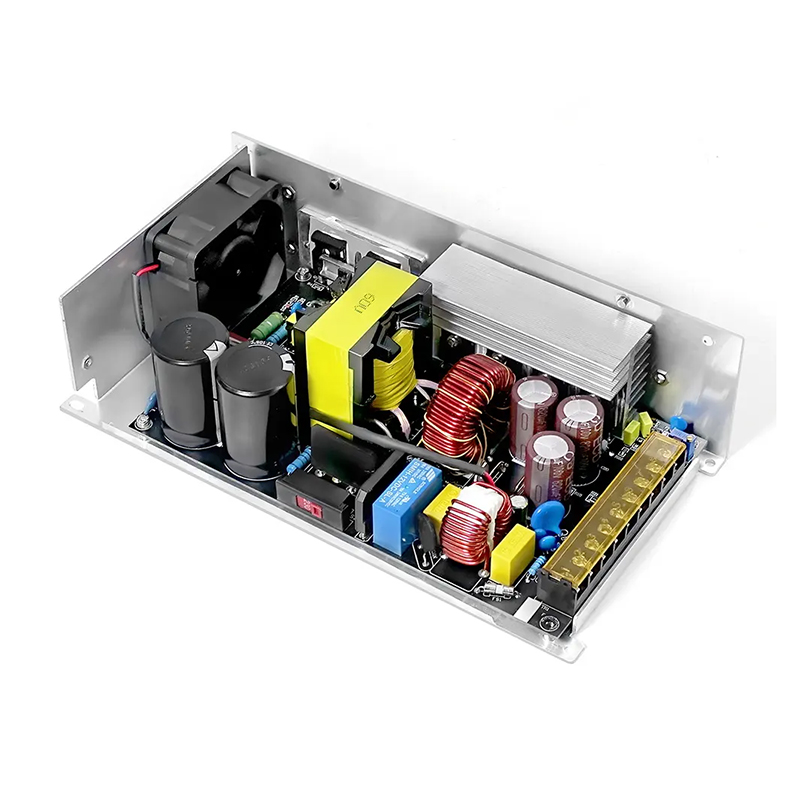

PSU DC 24V 800W Switch mode power supply HX-800-24

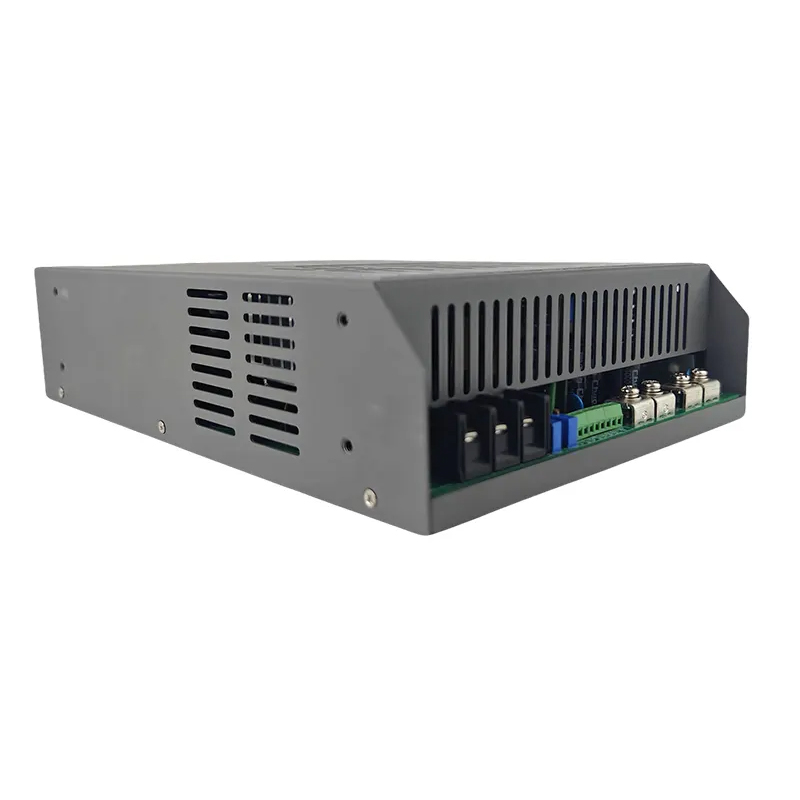

AC to DC Power supply 60V 6000W

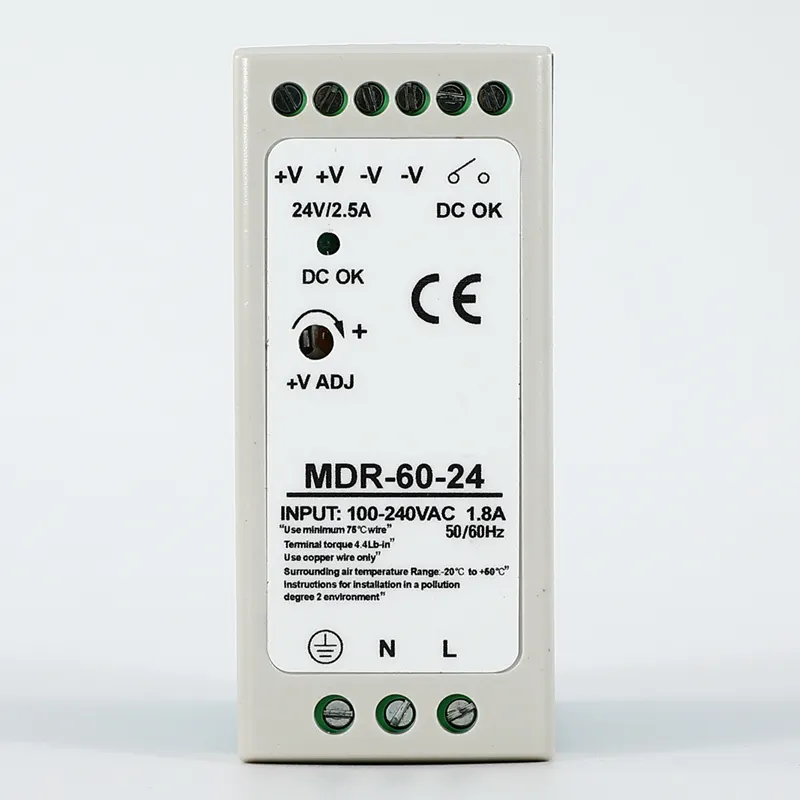

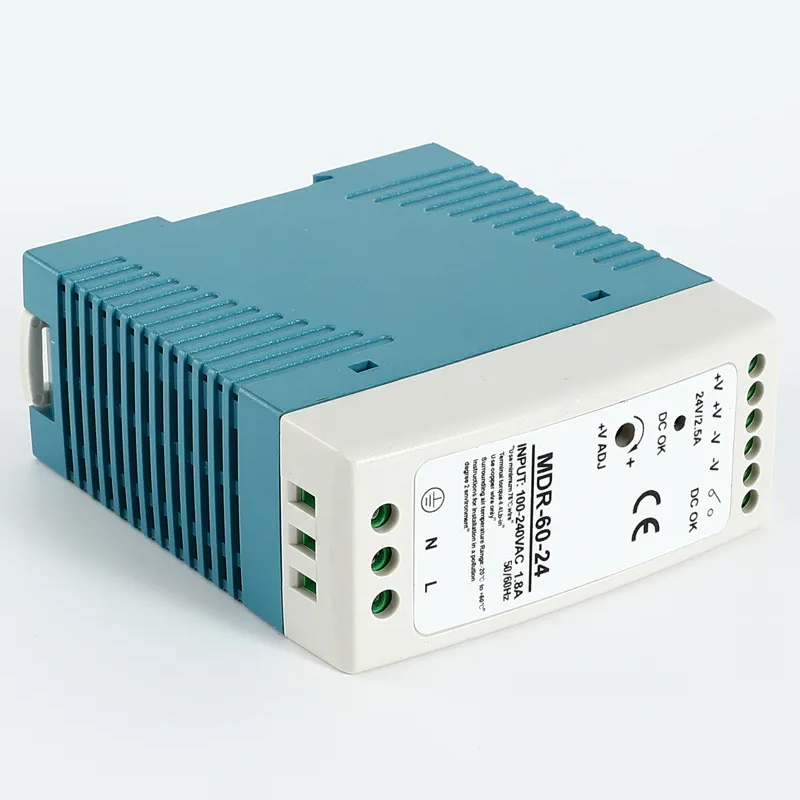

24V 60W Din Rail power supply MDR-60-24

Single output 600W 24V PFC Switching Power Supply

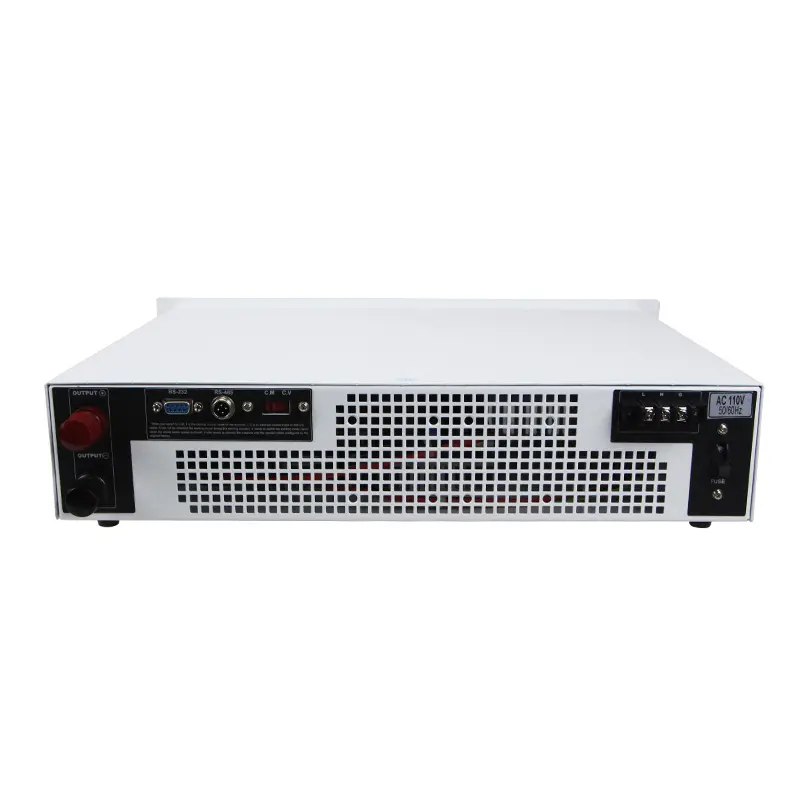

4KW 0-50V 80A Adjustable DC power supply 4000W

8000W 0-200V 40A DC programmable power supply 8KW

Din Rail power supply 12V 60W MDR-60-12

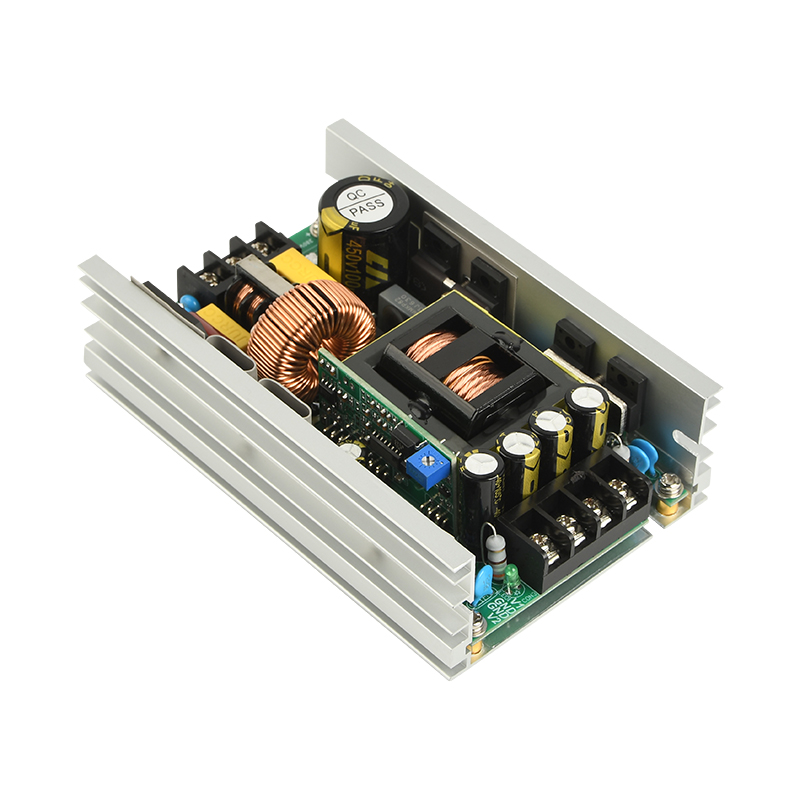

Dual output U-shaped power supply DC12V 36V 400W SMPS

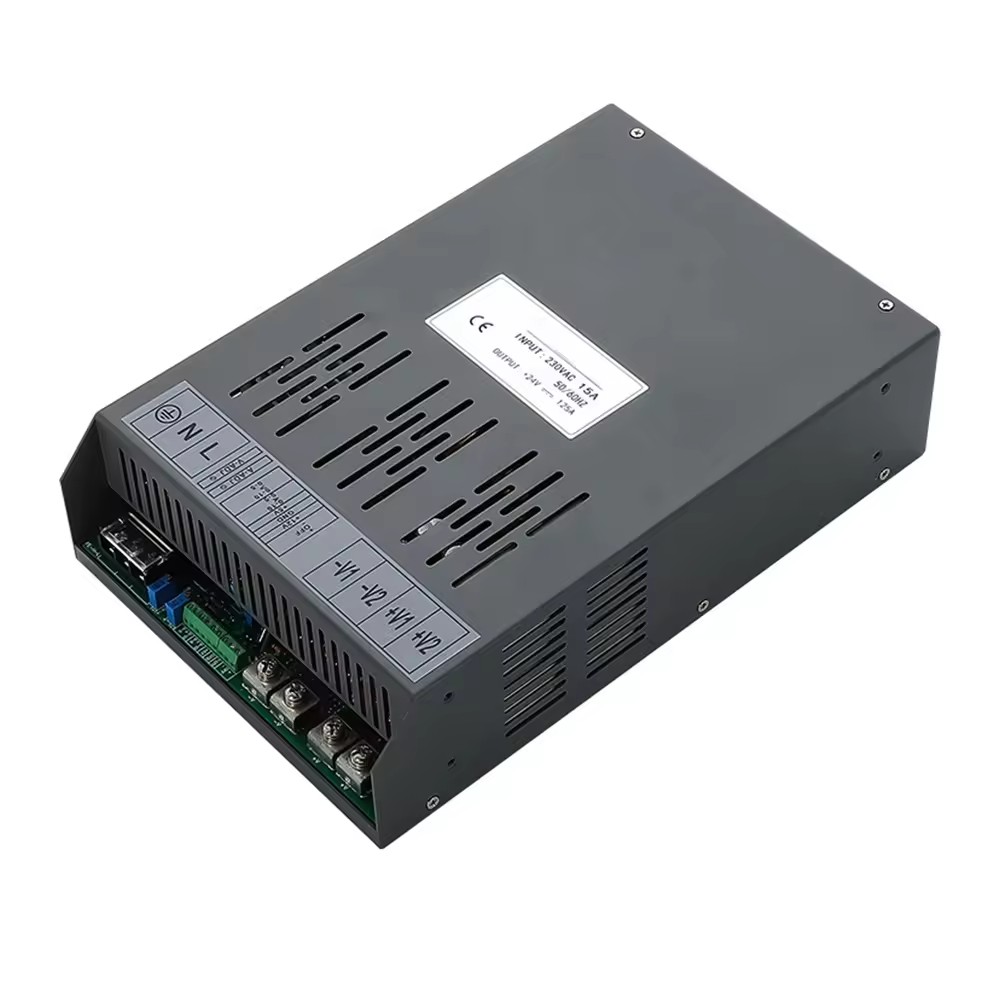

AC to DC Power supply0-48V 4000W with high PFC

NDR-120-24 Din Rail Switching power supply 24V 120W

0102030405

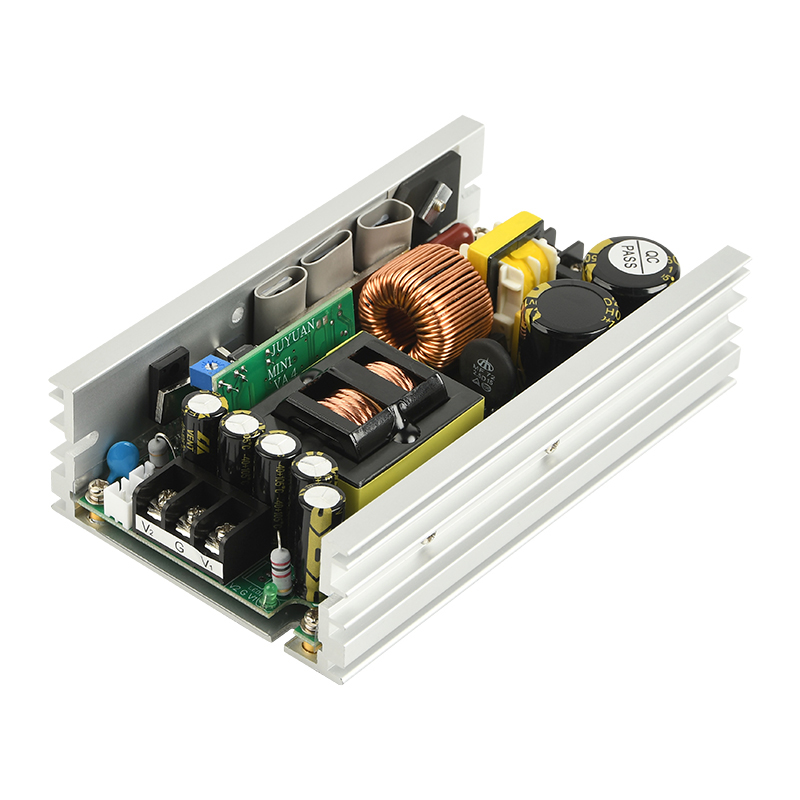

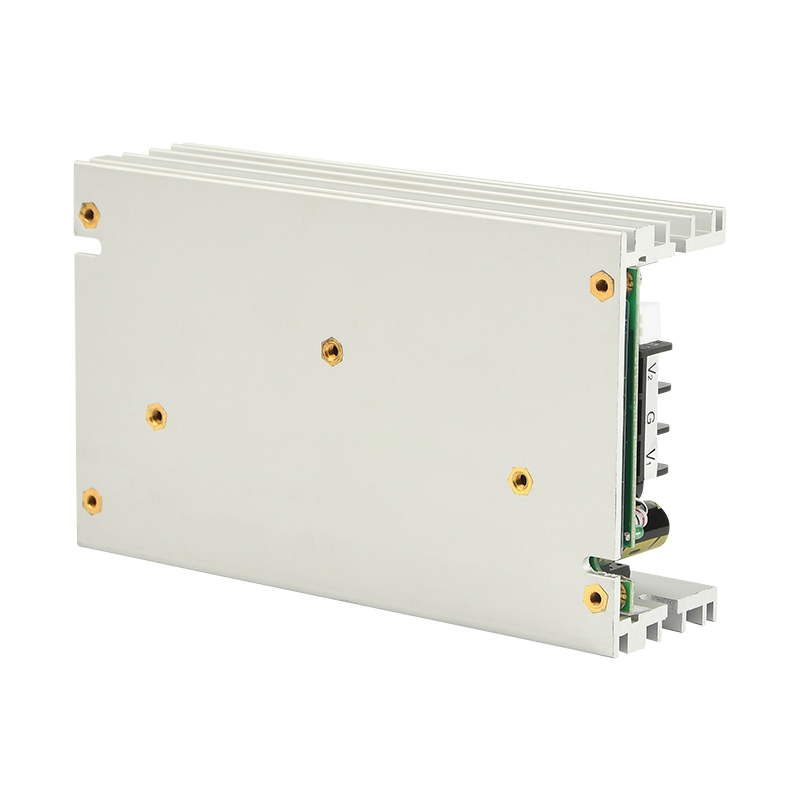

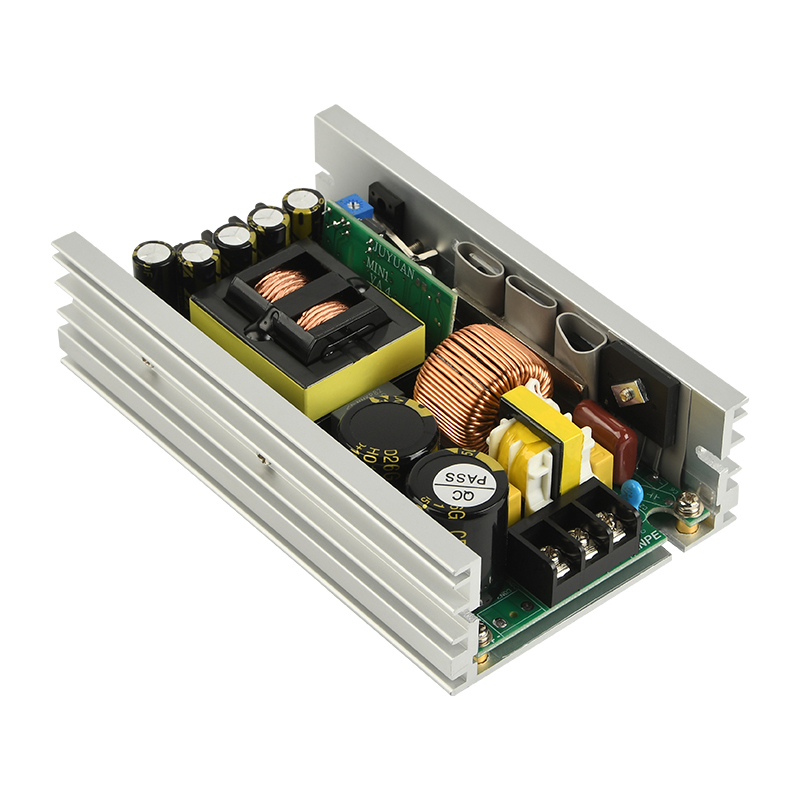

Single output 600W 24V PFC Switching Power Supply

Our U-shaped power supply has a power range of 40W-1200W, with single output, dual output, and triple output. There are various output voltages available and customization is supported They support efficient energy-saving modes, reduce energy consumption, and protect the environment. Equipped with power factor correction (PFC) function, it improves power efficiency and reduces energy waste.

product details

HXFeatures:

1. Worldwide AC input range: 90-264V

2. OEM and ODM is welcome

3. Small size, high efficiency, Silent design

4. Easy to operate and durable

5. Built-in high PFC

6. Stable output, intelligent control

7. Protections: Short circuit/ Overload/ Over voltage /Over temperature

8. Strong compatibility: It has a wide range of applications and is compatible with various electrical devices

9. 3 years warranty

HXSpecifications

1. High efficiency, low temperature rise
2. Inside filters, low output noise
3. Wide range AC input voltage
4. With short circuit, overload, overvoltage protection.
Parameter / Model		HX-600-12U	HX-600-24U	HX-600-36U	HX-600-48U
OUTPUT	DC Output Voltage	+12V	+24V	+36V	+48V
	Output Rated Current	42A	25A	16.7A	12.5A
	Output Current Range	0-42A	0-25A	0-16.7A	0-12.5A
	Rated power	504W	600W	601.2W	600W
	Ripple noise	240mVp-p	240mVp-p	360mVp-p	480mVp-p
	Output adjustable range	±10%
	Output Accuuracy	±1%
	Line Regulation	±0.5%
	Load Regulation	±0.5%
	Set up,Rise,Hold up time	800ms, 30ms,16ms/115VAC 300ms, 30ms,50ms/230VAC
INPUT	Input Voltage range	90~264V AC
	AC current	6A/115V 3A/230V
	Input frequency	50~60Hz
	Efficiency	89% @230Vac	90%@230Vac	91% @230Vac	92%@230Vac
	Inrush current	------
	Leakage Current	<0.5mA@240V
	Power Factor	>0.9@220V,>0.95@110V
Over Temp.protection	Over load protection	105~150% Protection, automatic recovery
	Short circuit protection	automatic recovery
	Over temperature	The cover temp. More than 105℃,Output shutdown, automatic recovery.
	Output over-voltage	16~18V; 30-33V; 40-43V; 56-60V
	Other function	With 12V0.3A output for fan
ENVIRONMENT	Working Temp.,Humidity	-10~50℃,10~90% RH,No condensation
	Storage Temp.,Humidity	-20~85℃,10~95% RH
	Temp.,Drift	±0.03%/℃(0~50℃)
	Vibration	10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
SAFETY&EMC	Safety standards	GB4943
	Withstand Voltage	I/P-O/P,I/P-FG:1.5KV;O/P-FG:0.5KV DC 1min.
	Insulation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
	EMC standards	EN55022 CLASS A,EN61000-3-2 CLASS C
OTHER	Dimension	1688348mm
OTHER	Weight	0.72Kg
Note:	1,All the parameters in the 230VAC input, rated load, temperature 25 ℃, humidity 70% under the conditions of determination; 2, Accuracy: including setting error, line adjustment rate, load regulation rate; 3,Ripple test: connect the power supply and load with 30cm long wire and 0.1u and 47u capacitance at the load end, measured on the load side with 20MHz oscilloscope; 4,Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5,Load regulation: the measured output load from 0 to 100% load change measured;
