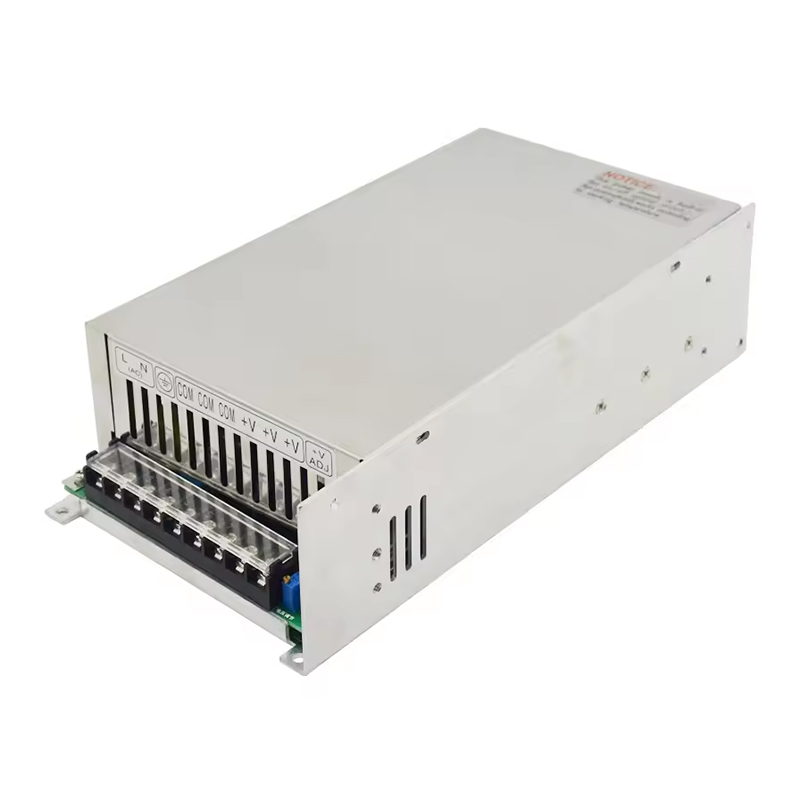

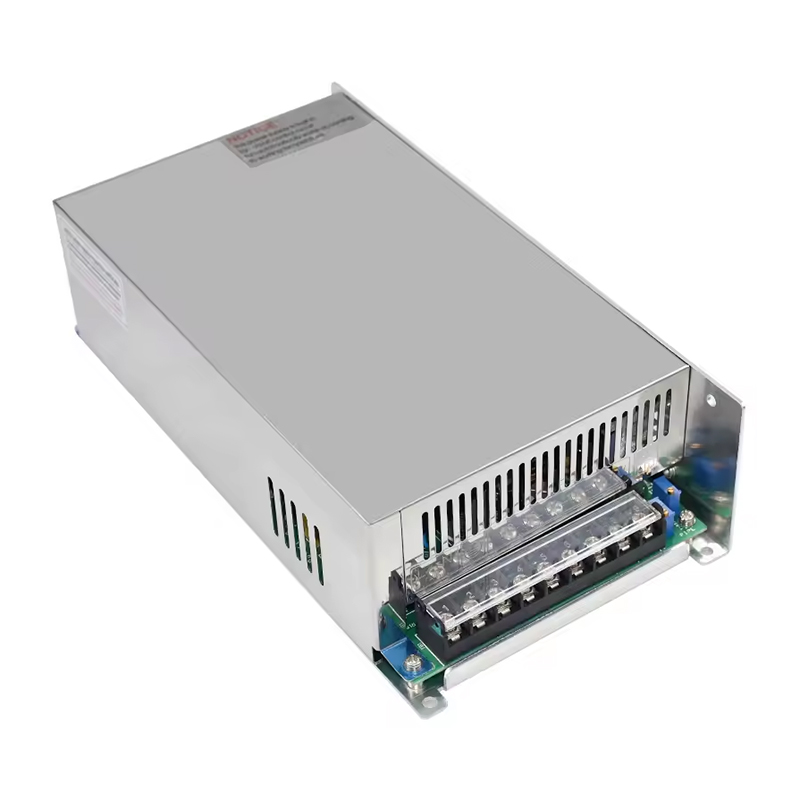

PSU DC 24V 800W Switch mode power supply HX-800-24
HXFeatures:
1. AC input wide range: 110/220V
2. OEM and ODM is welcome
3. Withstand 300VAC surge inpupt for 5 seconds
4. Forced air cooling by built-in DC fan
5. High efficiency, long life and high reliability
6. 100% full load aging test
7. Protections: Short circuit/ Overload/ Over voltage /Over temperature
8. 2 years warranty
HXSpecifications
| Datasheet: | |||
|
MODEL |
HX-800-24 | HX-800-36 | |
| OUTPUT | DC voltage | 24V | 36V |
| Rated current | 33.3A | 22.2A | |
| Current range | 0-33.3A | 0-22.2A | |
| Rated power | 800W | 800W | |
| Ripple&noise | 240mVp-p | 300mVp-p | |
| Voltage adj range | 20.8~26.5V | 33~39.6V | |
| Voltage tolerance | ±1% | ±1% | |
| Line regulation | ±0.5% | ±0.5% | |
| Load regulation | ±0.5% | ±0.5% | |
| Setup,rise time | 200ms,100ms | ||
| Hold up time | 20ms | ||
| INPUT | Voltage range | 180-264VAC | |
| Frequency range | 47-63Hz | ||
| AC current | 4.5A/230VAC | ||
| Inrush current | 60A/230VAC | ||
| Efficiency |
>86% |
>88% |
|
| Leakage current | <3.5mA/240VAC | ||
| PROTECTION | Overload | 115-130% rated output power | |
| Over voltage | 115%-150% of voltage | ||
| Protection type: shut down o/p voltage, re-power on to recover | |||
| Over temperature | -30°C ~ +60°C | ||
| Protection type: shut down o/p voltage, recover automatically after temperature goes down | |||
| ENVIRONMENT | Working temperature | -20°C ~ +50°C | |
| Working humidity | 20%~90%RH non-condensing | ||
| Storage temperature | -30°C ~ +85°C | ||
| Storage humidity | 10%~90%RH | ||
| TEMP coefficient | ±0.05%/°C (0-50°C) | ||
| SAFETY | Safety standards | Compliance to EN55022:2006+A1:2007; EN55024; EN 60950 EN61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008 | |
| Withstand voltage | I/P-O/P:1500VAC, I/P-FG:1500VAC, O/P-FG:500VAC | ||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100MΩ | ||
| OTHERS | MTBF | 197K hrs min. MIL-HDBK-217F (25°C) | |
| Dimension | 240*125*65mm (L*W*H) | ||
| Packing | 1.40kg/pc, 10pcs/ctn | ||
| Certification | CE/FCC/RoHS | ||
| NOTE | 1. All parameters NOT specially mentioned are measured at normal input, rated load and 25 °C of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
| 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||

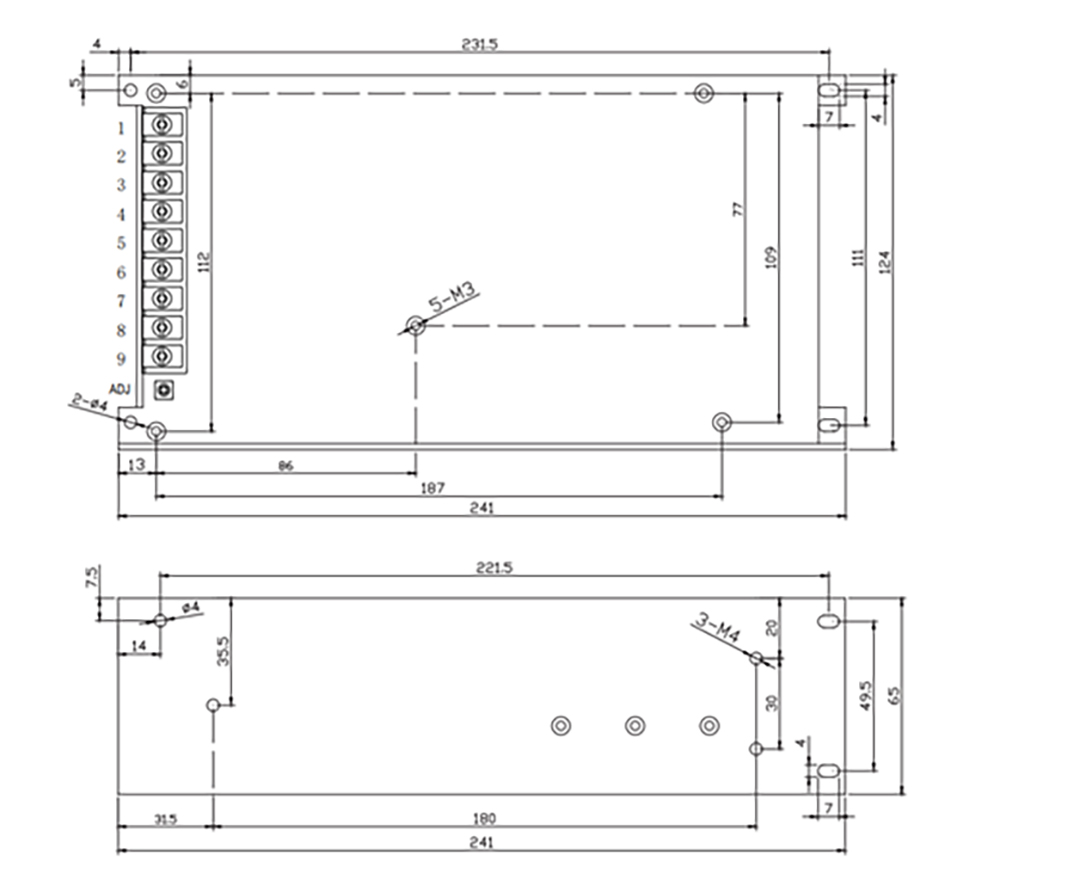

HXSize
