AC to DC Power supply 60V 6000W
HXFeatures:
1. Worldwide AC input range: 180-264V
2. OEM and ODM is welcome
3. Withstand 300VAC surge inpupt for 5 seconds
4. With digital display show the output voltage and current
5. High efficiency, long life and high reliability
6. Stable output, intelligent control
7. Protections: Short circuit/ Overload/ Over voltage /Over temperature
8. 2 years warranty
HXSpecifications
| Model | HX-6000-60 |
| Dc output voltage | 0-60V |
| Output voltage tolerance | ±0.1% |
| Rated output current | 100A |
| Output current range | 0-100A |
| Ripples and noise | <400mVp-p |
| Incoming line stability | ±0.5% |
| Load stability | ±0.5% |
| Dc output | 6000W |
| Efficiency | >90% |
| Input voltage range | 90-265VAC |
| Leakage current | <0.5mA/260VAC |
| Overload protection | 105%-150%TypeCut off output reset: Automatic recovery |
| Temperature coefficient | ±0.03%℃(0-5℃) |
| Start/Rise/Hold time | 200ms,50ms,20ms |
| Vibration resistance | 10-500H,2G 10min,/1 Period, length 60 minutes, each axis |
| Pressure resistance | I/P-O/P:1.5KVAC/10mA；I/P-CASE:1.5KVAC/10mA;O/P-CASE:1.5KVAC/10mA |
| Isolation resistance | I/P-O/P:50M ohms ;I/P-CASE:50M ohms；O/P-CASE:50M ohms |
| Working temperature, humidity | -10℃~+60℃，20%~90%RH |
| Storage temperature, humidity | -20℃~+85℃，10%~95%RH |
| Shape size | 356*216*80mm |
| Weight | 7.5Kg |
| Safety standards | CE /ROHS/FCC |

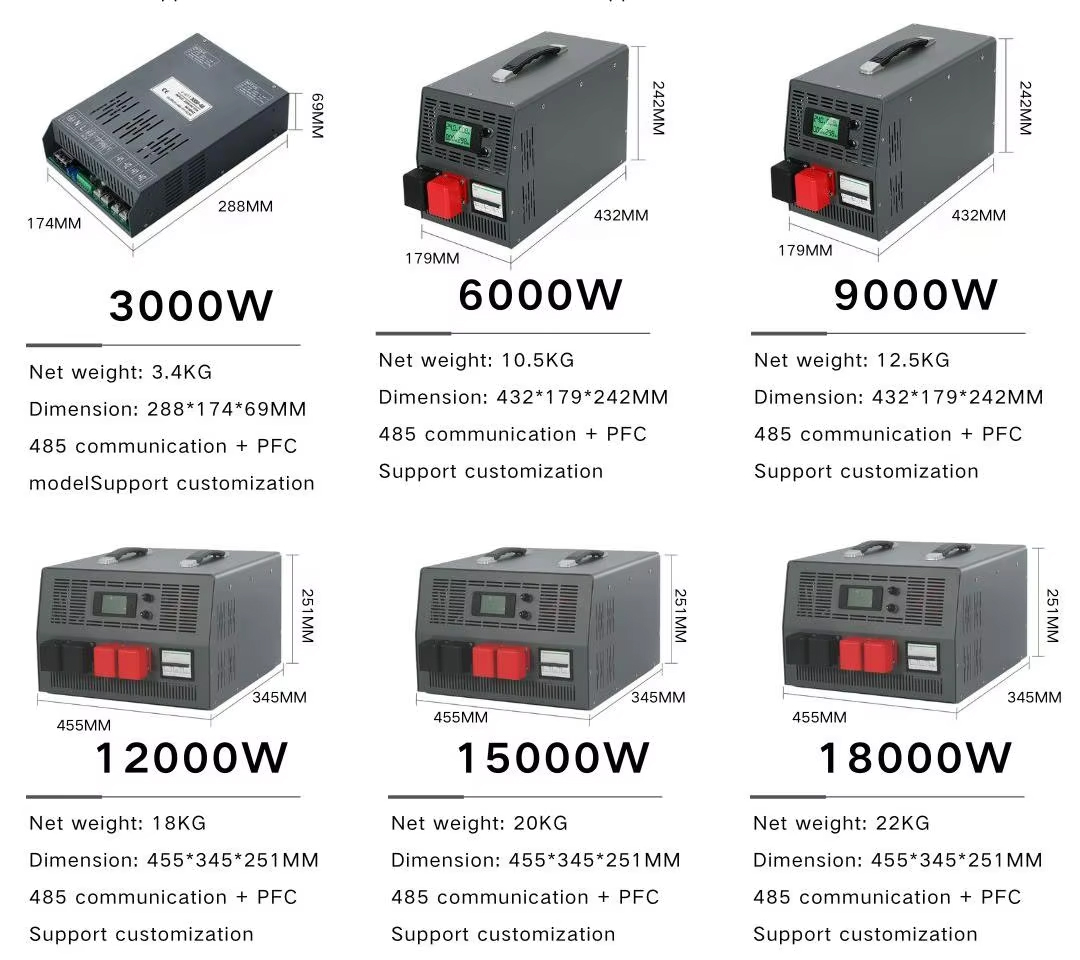

HXProduct series

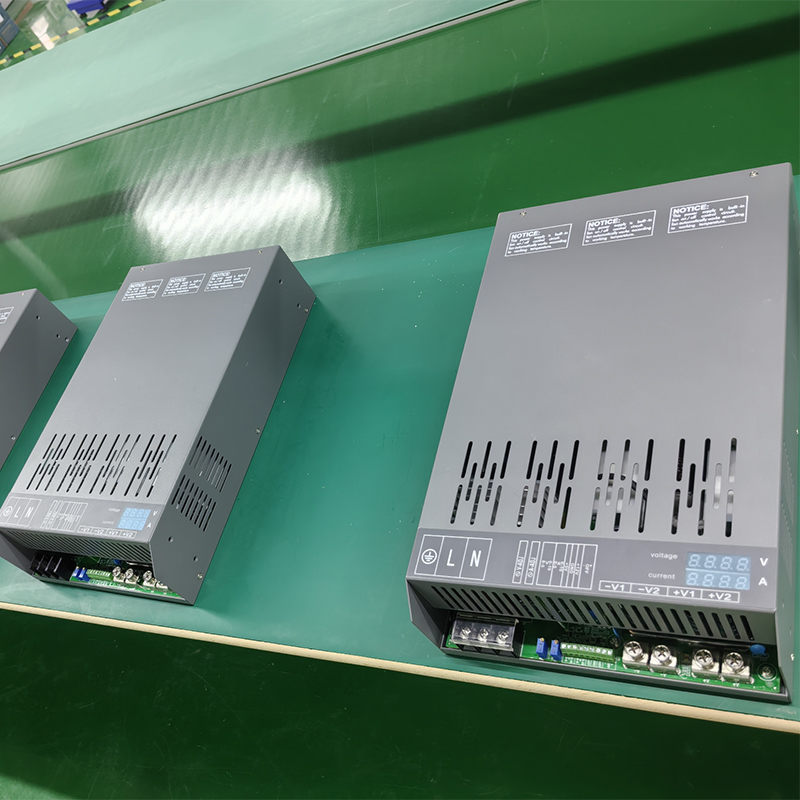

HXWorkshop Production Line
