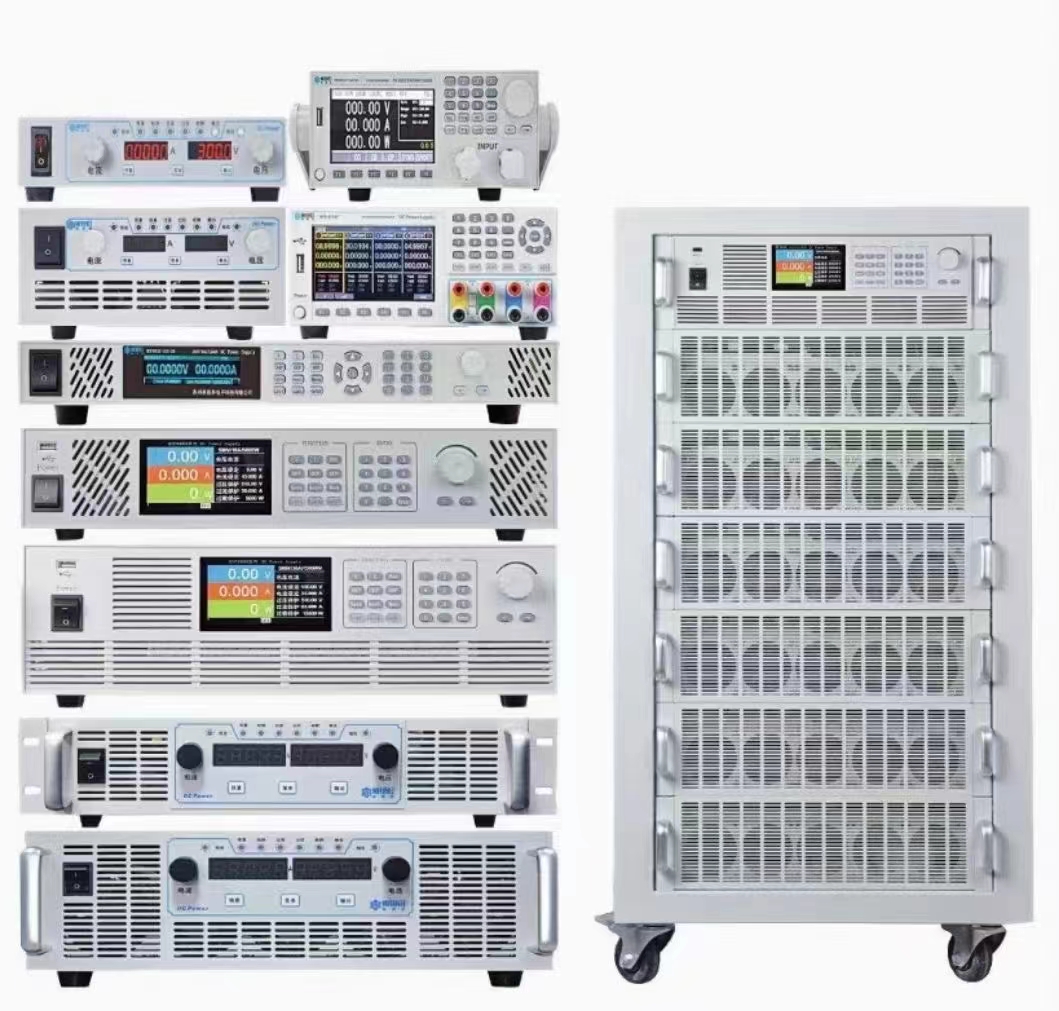

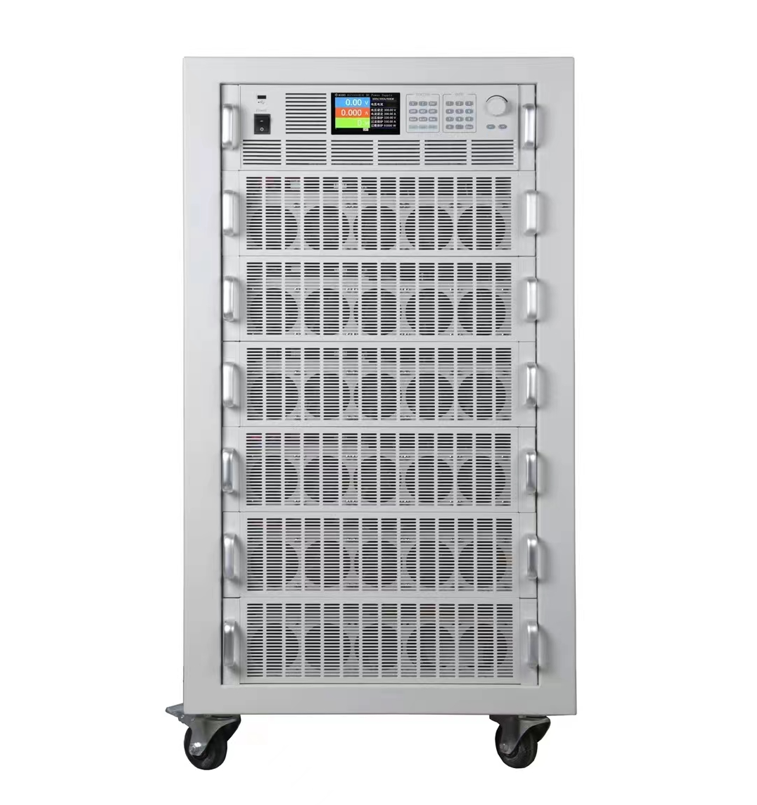

60KW 0-300V 200A DC programmable power supply

Switching Power Supply

60KW 0-300V 200A DC programmable power supply

HX DC programmable power supply series adopts high-frequency PWM control and high-frequency full bridge conversion technology, with fast dynamic response, strong overcurrent capability, and low output ripple.

  • Model HX-60-300
  • Input Voltage AC380V±10%, 50/60Hz±3Hz (Standard) 3 Phase
  • Output Current (Amp) 0-200A (max)
  • Output Voltage (Vdc) 0-300V
  • Output Power 60000W / 60KW (max)

HXProduct description

 It has the advantages of small size, light weight, low noise, high efficiency, and simple operation. The output power ranging from 1000W to 3000kW The output volage can be 5V~20,000V, the output current can be 1A ~50,000A. If you have special requirements, we support customization.

HXProduct Specifications

Model

HX-60-300

Input Voltage

AC380V±10%, 50/60Hz±3Hz (Standard)  3 Phase

Output Current (Amp)

0-200A (max)

Output Voltage (Vdc)

0-300V

Output Power

60000W / 60KW (max)

Precision

≤0.1%

Ripple

≤0.5% Vrms + 10mV

Power supply stability

≤0.1%+10mV

Display mode

4.3“TFT-LCD

Voltage Display Accuracy

≤±(0.5% + 10mV)

Current Display Accuracy

≤±(0.5% + 10mA)

Voltage setpoint accuracy

≤±(0.1% + 10mV)

Current setpoint accuracy

≤±(0.5% + 10mA)

Output Voltage Overshoot

Build in O.V.P Protection with a rate of + 5%

Operation Temperature| Humidity

Operation Temperature : (0~45)ºC; Operation Humidity : 10% ~ 85% RH

Storage Temperature | Humidity

Storage Temperature : (-20~70)ºC; Storage Humidity :10% ~ 90% RH

Over-Temperature Protection

(75~85) ºC

Heat Dissipation Mode/ Cooling mode

Adopt PMW speed regulating fan, fan cooling

Efficiency

≥88%

Start-up Output voltage setting time

≤3S

Protection

Input phase loss protection, Over voltage, over voltage, over current, short circuit, over heat protection

Noted : if need addition Reverse Connection & Polarity reversal protection should be contact our factory for customization

Insulation Strength

Input output: AC1500V, 10mA, 1 minutes;

Input - machine shell: AC1500V, 10mA, 1 minutes;

Output - shell: AC1500V, 10mA, 1 minutes

Insulation Resistance

Input-Output ≥20MΩ;

Input-Output ≥20MΩ;

Input-Output ≥20MΩ.

control interface

RS232, RS485, LAN, 0-5V/0-10V

MTTF

≥50000h

Dimension /Net Weight

430*560*792mm /150kg (for reference)

Special request

Please tell us before ordering



HXMain applications

Motor, testing, various equipment, power tools, automotive electronics, chips and electronic components, opening and closing coils and DC switches, airborne equipment, radar, navigation and other military electronic equipment, as well as industrial and mining enterprises, university laboratories, research institutes, etc.

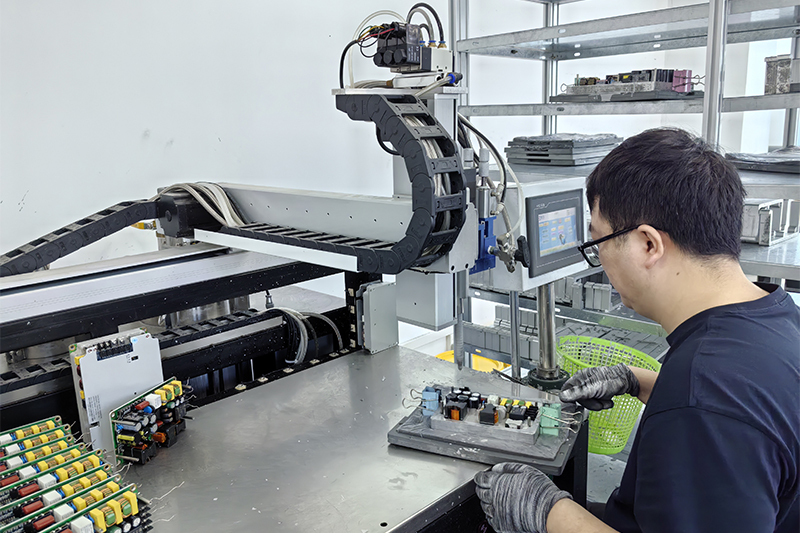

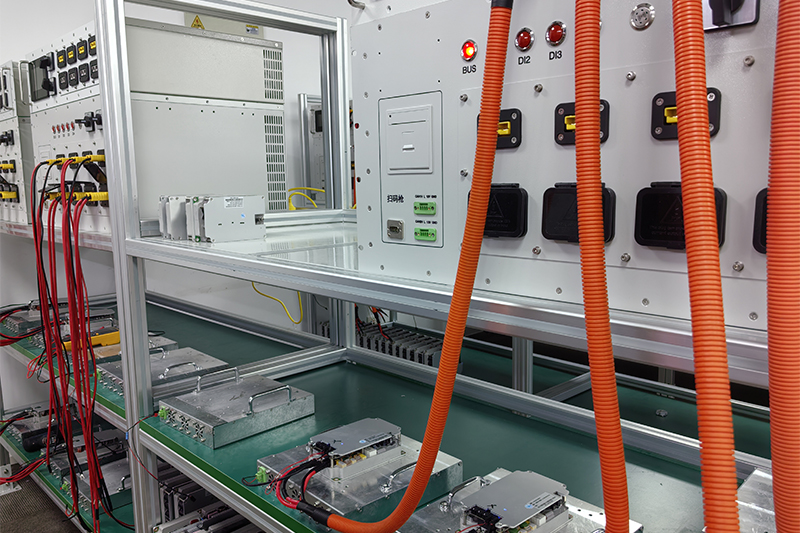

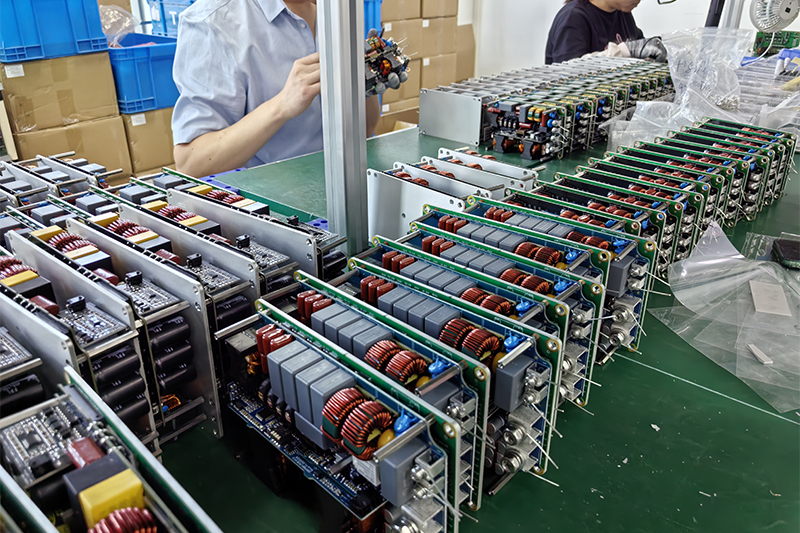

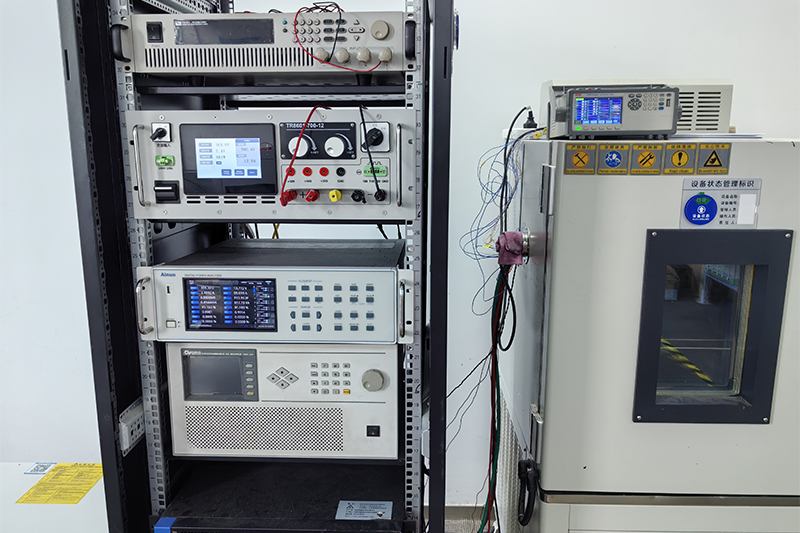

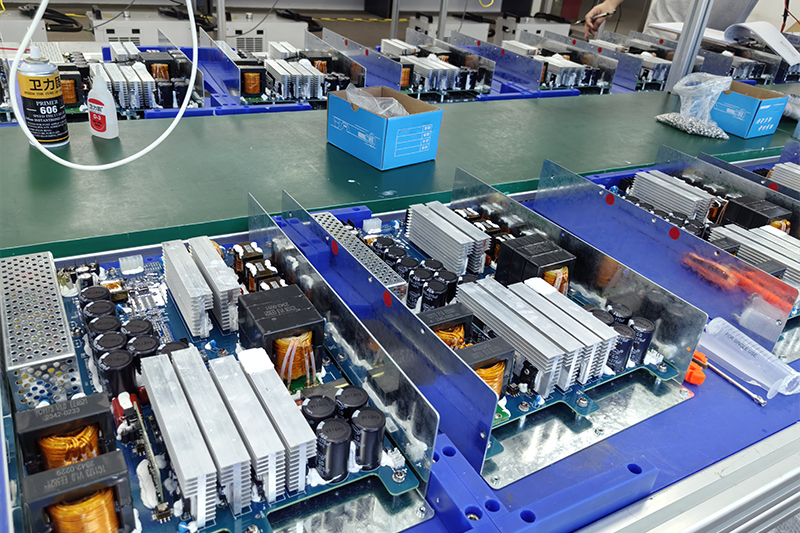

HXWorkshop Production Line

Workshop Production Line2fyf
Workshop Production Line3cce
Workshop Production Line4vtt
Workshop Production Line5er7
Workshop Production Line73ee
Workshop Production Line837p

HXProduct Application

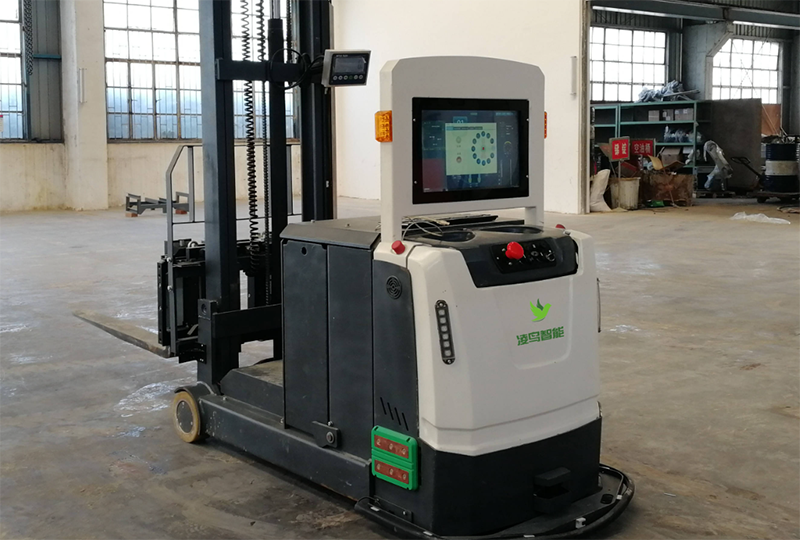

AGV transport vehicle
Electric Bus
Electrical Forklift
Golf cart
Industrial robot
LED lighting

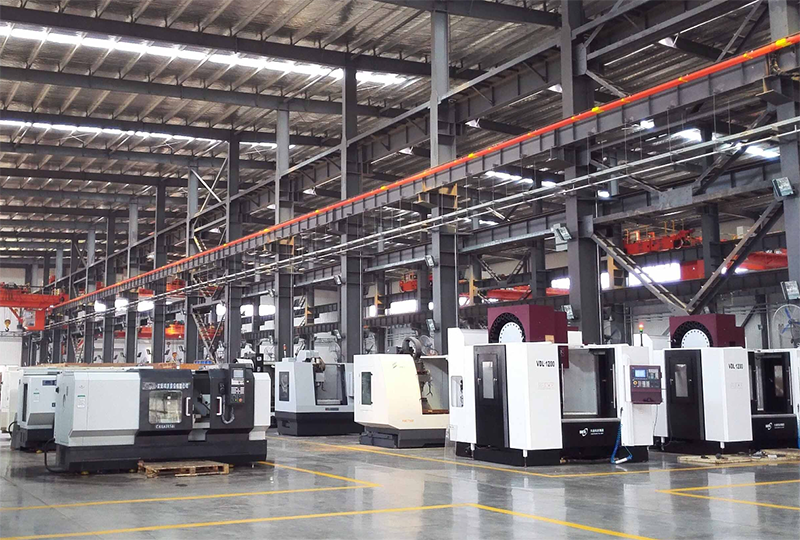

Mechanical equipment
Recreational Vehicle
Solar power
